Global first
Write the coordination once as a protocol instead of scattering it across agent prompts and callbacks.
Global protocols for multi-agent LLM systems
Write one global protocol. Run deadlock-free agents.
Building multi-agent systems is hard because coordination logic ends up scattered across agent prompts, callbacks, and state machines no one fully understands. ZipperGen gives you a single global protocol: who sends what to whom, who runs which LLM, and who owns each decision — including tools, humans, and external services. ZipperGen projects it to each agent automatically and runs it concurrently.
Core projection theorems machine-checked in Lean 4.
Projected locally
Each lifeline receives the local program it needs: sends, receives, owned decisions, tool calls, and optional human control points.
Deadlock-free
If the workflow compiles, the coordination layer is structurally deadlock-free by construction.
Tiny workflow
Branching has an owner.
The annotation @ Editor says that Editor owns the decision. ZipperGen
generates the control communication needed by the other lifelines.
@workflow
def write_tweet(topic: str @ User) -> str:
User(topic) >> Writer(topic)
Writer: tweet = draft(topic)
Writer(tweet) >> Editor(tweet)
Editor: approved = approve(tweet)
if approved @ Editor:
Editor(tweet) >> User(tweet)
else:
Editor(tweet) >> Writer(tweet)
Writer: tweet = revise(tweet)
Writer(tweet) >> User(tweet)
return tweet @ UserLarger example
Two event loops, shared agents, no routing code.
command_center.py runs two independent loops in parallel. One handles
incoming email: Mailbox polls the inbox, Dispatcher classifies
each message, and fragments handle scheduling, cancellations, tasks, and replies.
The other handles Telegram commands from the owner. Calendar,
Writer, and User are shared between both streams.
ZipperGen's projection ensures each receives exactly the messages it needs, from
whichever stream generated them, in the order the protocol requires.
Run it with mock data to see both streams live without any API keys:
python examples/command_center.py --mock@workflow
def command_center():
with parallel:
with branch:
while True @ Mailbox:
if mail_present() @ Mailbox:
Mailbox: email = pop_pending_email()
Mailbox(email) >> Dispatcher(email)
Dispatcher: route = classify_email(email)
Dispatcher: route = normalize_route(route)
if (route == "spam") @ Dispatcher:
...
elif (route == "scheduling") @ Dispatcher:
scheduling_branch(email)
elif (route == "task") @ Dispatcher:
task_branch(email)
reply_branch(email)
else:
reply_branch(email)
else:
Mailbox: _ = wait_briefly()
with branch:
while True @ Chat:
if chat_present() @ Chat:
Chat: chat_msg = pop_pending_chat()
Chat(chat_msg) >> Dispatcher(chat_msg)
Dispatcher: chat_route = classify_chat(chat_msg)
Dispatcher: chat_route = normalize_route(chat_route)
if (chat_route == "schedule_meeting") @ Dispatcher:
schedule_meeting_from_chat(chat_msg)
elif (chat_route == "create_task") @ Dispatcher:
create_task_from_chat(chat_msg)
...
else:
Chat: _ = wait_briefly()Causal runtime guards
When locally received data can be stale, guards can read the latest causally visible state instead of a sequential log. Vector clocks and message-carried views make the guard result depend on the asynchronous communication structure.
latest_device_on = At[Device].on == True
if latest_device_on @ Indicator:
...Parallel regions
Parallel regions run several sub-programs concurrently. Shared lifelines interleave their branch-local programs, and branch-specific channels preserve FIFO order where it matters.
with parallel:
with branch:
Orchestrator(candidate) >> TestRunner(candidate)
TestRunner: (test_status,) = run_tests(candidate)
TestRunner(test_status) >> Committer(test_status)
with branch:
Orchestrator(candidate) >> Security(candidate)
Security: (security_status,) = scan_security(candidate)
Security(security_status) >> Committer(security_status)Try it locally
No service required for the first examples.
The built-in mock backend returns placeholder model outputs, so examples can be run without API keys. Switch to OpenAI, Mistral, or Claude with one configuration line when you want real model calls. ZipperGen can also use OpenAI-compatible local model servers such as vLLM; the repository includes a small local Qwen/vLLM example.
git clone https://github.com/zippergen-io/zippergen.git
cd zippergen
pip install -e .
python examples/hello.py # two lifelines, one LLM call
python examples/command_center.py --mock # email triage + Telegram commands
python examples/parallel.py # fan-out / fan-in across branchesFormal foundation
Based on Message Sequence Charts.
The projection from a global protocol to per-agent local programs is syntax-directed, and deadlock-freedom follows by structural induction; no runtime checking required. The core theorems are in the paper and machine-checked in Lean 4.
Bollig, Függer, Nowak. Provable Coordination for LLM Agents via Message Sequence Charts. arXiv:2604.17612 [cs.PL]
Bollig. Causal Past Logic for Runtime Verification of Distributed LLM Agent Workflows. arXiv:2605.20923 [cs.LO]
Build inspectable agent workflows.

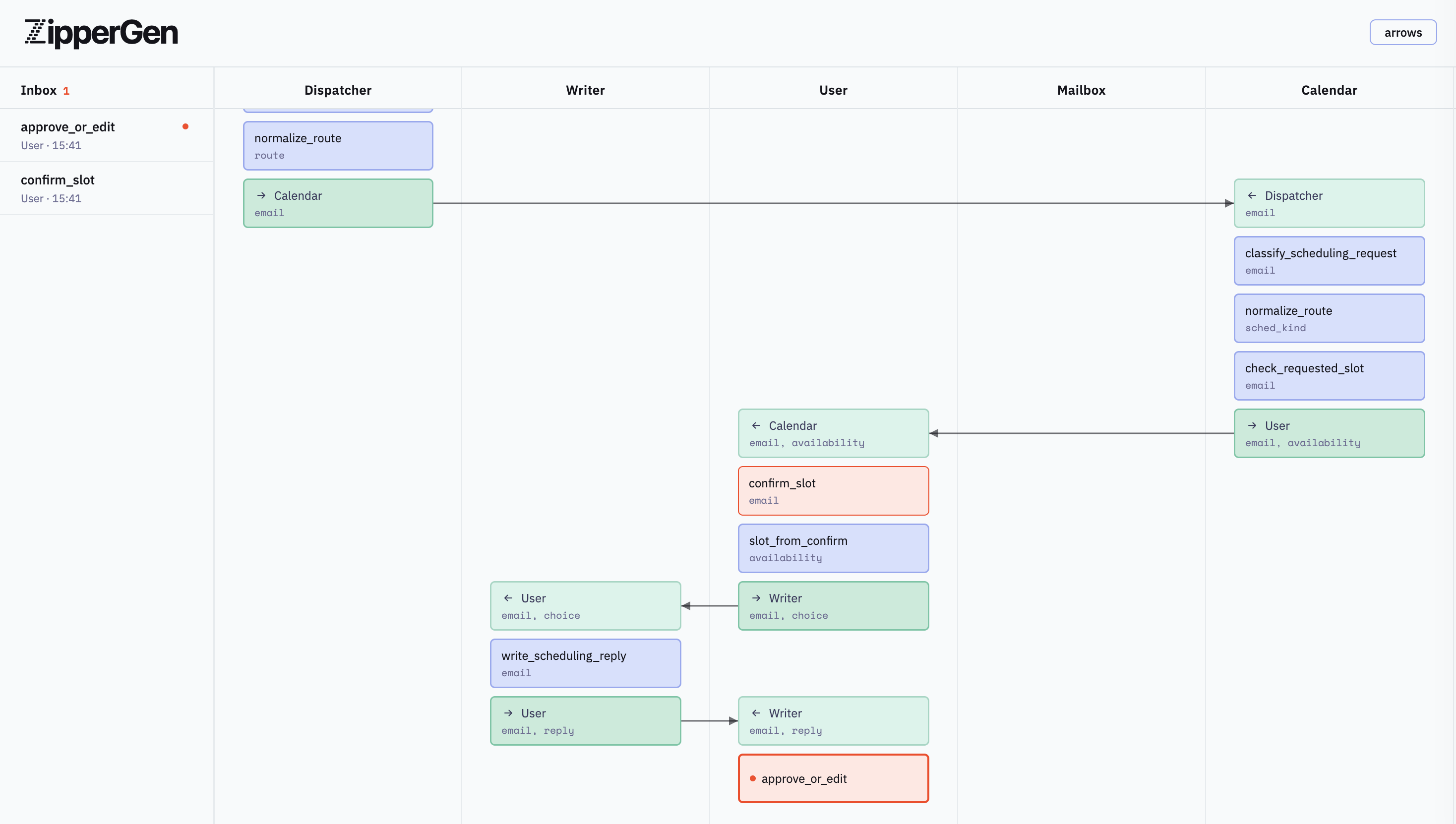

Start from the examples, inspect the generated message sequence chart, and decide whether global protocols fit your agent system.
